TORIC UHD 30mm 1-8x24 MRAD IR LPVO SFP Rifle Scope

The TORIC UHD 30mm 1-8x24 SFP rifle scope is a high-performance low power variable optic (LPVO). With a true 1x magnification, this scope will provide an extremely wide field of view for fast target acquisition. Quickly adjust to 8x for longer shots.

AUD $1,503
Adding to cart… The item has been added
SKU
83

Performance Grade Optics

Direct from the Manufacturer

Precision Engineering

No Markup Added

Personalized Support

Details and Specs

The TORIC UHD 30mm 1-8x24 SFP rifle scope is designed as a high-performance low power variable optic (LPVO). With a true 1x magnification, this scope will provide an extremely wide field of view for fast target acquisition. Quickly adjust to 8x for longer shots.

This scope is specifically designed for the AR platform, but equally at home on your dangerous game or lightweight mountain rifle. The daylight bright center dot illumination will allow accurate target engagement in virtually any condition, especially extremely low light. And the glass etched MRAD reticle provides elevation and windage correction. Weighing in at just 20 ounces and 11-inches long, this compact scope is a great option when you need the versatility of a close quarters or long-range optic.



Discover top-quality Rifle Scopes Binoculars Precision Gear Designed for hunters, shooters, and outdoor enthusiasts seeking precision and clarity. Visit our blog!

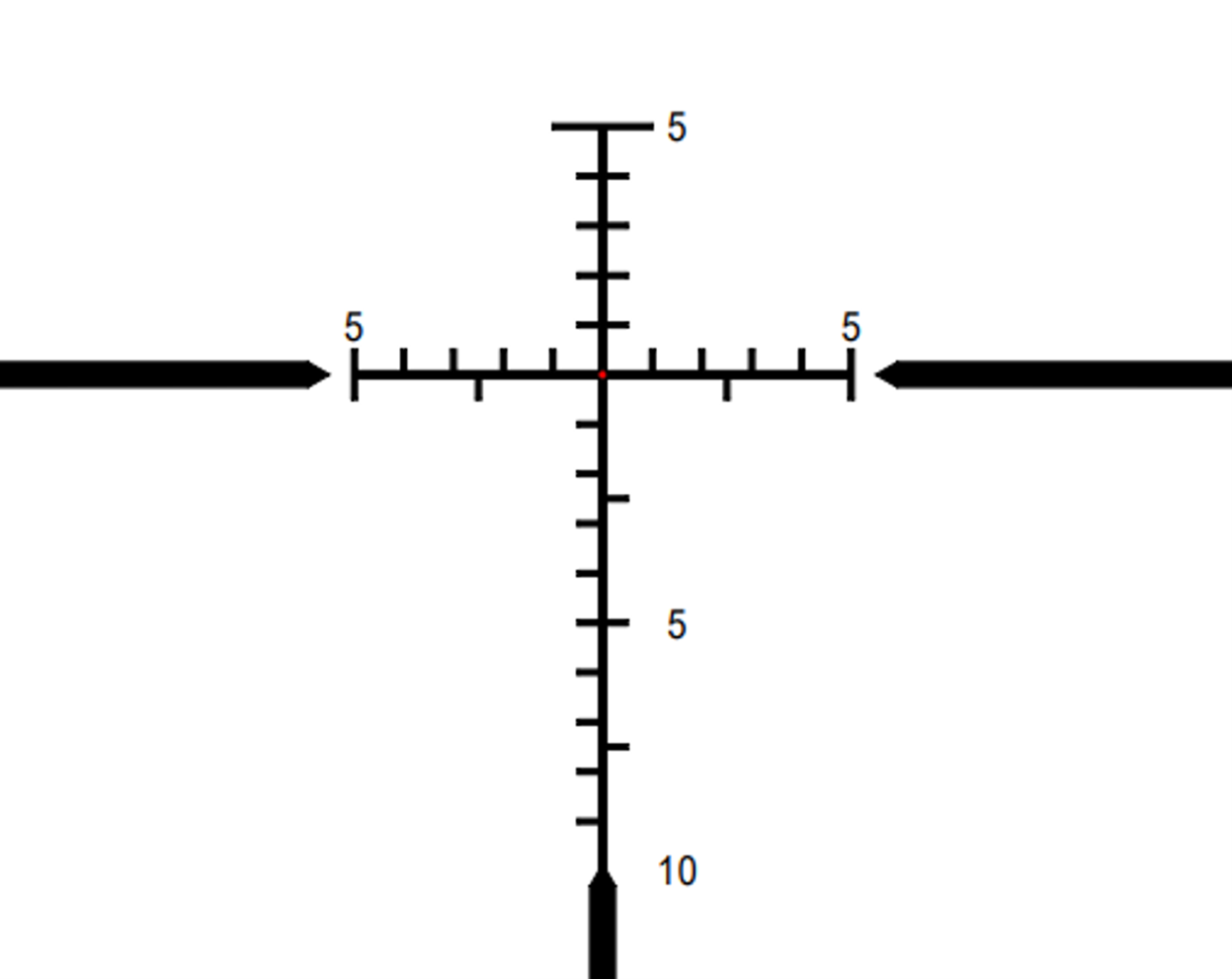

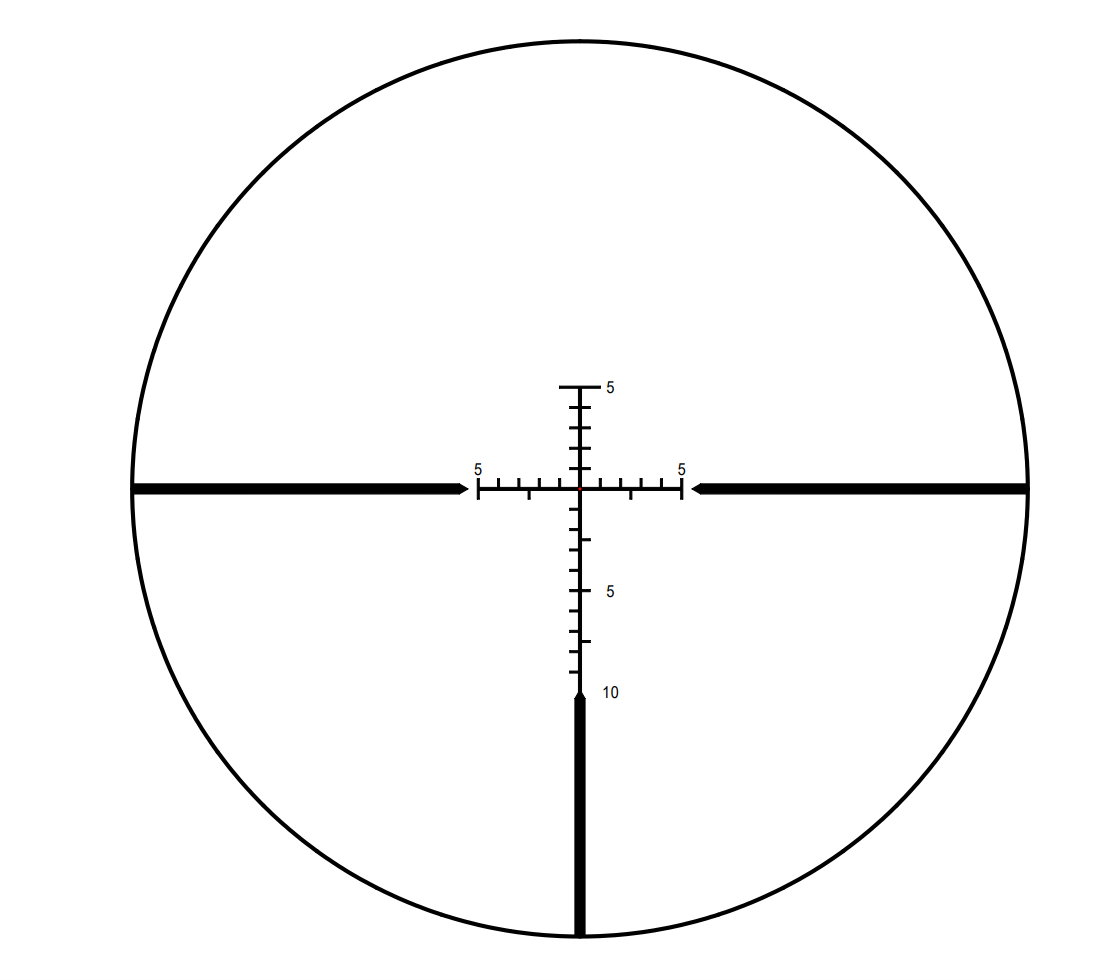

The glass etched MRAD reticle in the TORIC 1-8X24 LPVO is a second focal plane (SFP) design that incorporates a daylight bright illuminated center dot for extremely fast target acquisition whether mounted on your AR, dangerous game or lightweight mountain rifle. The MRAD reticle is broken down into 1 MRAD and 2.5 MRAD hold points allowing for bullet drop and windage correction right in the reticle.

Ultra High Definition Technology

Ultra High Definition Technology

TRACT's Fully Multi-Coated, Ultra High Definition optical system, utilizes an extra low dispersion (ED) lens to eliminate color fringing as well as highly prized Schott HT (High Transmission) glass to provide superior light transmission and bright, clear images even in low light hunting conditions.

30mm Main Body Tube

30mm Main Body Tube

The 30mm, one-piece tube provides greater strength and a wider adjustment range for extreme long range shooting

SecondFocal Plane Reticle (SFP)

SecondFocal Plane Reticle (SFP)

Second Focal Plane design places the reticle in the rear of the erector system and allows the reticle to remain consitent in size so the reticle is easily viewed at any magnification

Illuminated MRAD Reticle

Illuminated MRAD Reticle

MRAD Based reticle is designed to allow the shooter to measure targets to determine the distance and then make corrections by either dialing or using the reticle for bullet drop compensation. The reticle is broken up into 1 MRAD increments with larger hash marks indicating 5 MRAD increments along with a Daylight Bright Illuminated Center Dot with 10 different intensity settings

Capped Turrets

Capped Turrets

Precision machined turret features .2 MRAD per click adjustments and a with 20 MRAD per revolution and are easily reset to zero without the use of any tools.

Illuminated Reticle Dial

Illuminated Reticle Dial

Provides 10 different intensity settings with ON/OFF positions between each setting. The CR2032 battery with a expected life of 360 hours on medium intensity is included.

Waterproof and Fogproof with Argon Gas

Waterproof and Fogproof with Argon Gas

Fully waterproof and Fogproof using O-Ring seals and purged with Argon gas which has a higher resistance to temperature changes versus the Nitrogen used in many other competitor's products.

Magnification Ring

Magnification Ring

The super-smooth magnification ring, with rear facing numbers easily allows you to zoom from low to high power.

Quick Focus Eyepiece

Quick Focus Eyepiece

Easily and quickly allows you to focus the sharpness of the reticle

TRACT Trust Assurance Warranty

TRACT Trust Assurance Warranty

The TRACT Trust Assurance guarantees the functionality of the product for the duration of its lifetime regardless of whether you’re the original owner. No time limit applies and no paperwork is needed.

Magnification 1-8X
Objective Lens Diameter 24mm
Eye Relief (inches) 4 / 3.9
Exit Pupil 9.2 / 3
Field of View (Low Power/High Power in feet @ 100 yards) 105 /13
Diopter Adjustment Yes
Diopter Range +2/-3
SCHOTT HT Glass YES
Internal Gas Purged Argon
Length (inches) 10.9
Weight (ounces) 20.3
Elevation Adjustment Range (MRAD) 30
Click Value (MRAD) .2
Reticle Type Glass Etched MRAD
Illuminated Reticle Yes
Illuminated Reticle Battery Type CR2032
Illumination Battery Life 360 Hours at Medium Intensity
Recoil Shock Endurance 1,000g
Operating Temperature Range 158°F to -1.4°F
Parallax Setting 100 yards
Color graphite
Reticle Focal Plane 2nd
Eyepiece Outside Diameter 1.74 inches
Objective Outside Diameter 1.18 inches
Mount Space 6.75 inches
Waterproof (meters) 3
Shock Endurance 1,000g
Temperature Operating Range 158°F to -1.4°F
Country of Origin Japan
Tube Diameter 30mm
